Practical SDK Transparent Video Wall , Shopping Mall Clear LED Panel

Practical SDK Transparent Video Wall , Shopping Mall Clear LED Panel

Practical Transparent Video Wall

SDK Transparent Video Wall

Shopping Mall Clear LED Panel

Place of Origin:

Guangdong, China

Brand Name:

MST

Model Number:

TR series

Contact Us
Request A Quote
Product Details
Application:
Indoor, Semi-outdoor, Night Clube, Stage,shopping Mall Etc
Color:
VIDEO FULL COLOR
Panel Size:
1000*1000mm
Supplier Type:
Original Manufacturer, ODM, OEM
Media Available:
Datasheet, Photo
Use:
Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies
Function:
SDK
Pixel Pitch:
3.91mm, P3.9-7.8 /P2.6-5.2, P2.6-5.2/P3.9-7.8
Specification:
Video Wall
Product Name:
Transparent Led Screen
Material:
Aluminum Frame
Refresh Rate:
1920Hz-3840Hz
Screen Dimension:
1000*1000mm
Module Size:
500*125mm
Life Span:
1000000H
Brightness:
600-5000nits/sqm
Installation:
Lifting Ring
Port:
Shenzhen
Payment & Shipping Terms
Price
Negotiation
Packaging Details
flight case/Wooden case
Supply Ability
5000 Piece/Pieces per Month
Product Description

Full Color Wall Panel Front Open 3.9mm Glass Window Transparent LED Display Panel



Features:

Reliable magnetic capacitive character design
support various interfaces and signal sources
advanced digital conrol technology
support multi-transmission methods
network control
automatic brightness control
super processing ability
strong colour restoration



Description:

Perfect Display Effect

High brightness and clearly display effect with easy use control system which allow you easy become enviable led display experts.

Attractive Factory Price

We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.



Specification:

Pixel Pitch 3.91mm-7.81mm
Pixel Density 32768dots/sqm
Color Configuration 1R1G1B
LED Package SMD2121
Module Size 500mm x 250mm
Drive Mode 1/7 Scan
Standard Cabinet Size 1000mm x 500mm
Cabinet Weight 7KG
Brightness 1000 - 4200nits
Viewing Distance 4m-50m
Viewing Angle H: 160°; V:140°
Refresh Rate 1920 - 3840HZ
Frame Rate 120frame/sec
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10, 50HZ
Max Power Consumption 500W/sqm
Ave. Power Consumption 200W/sqm
Storage Temperature -30~+70 degree
Working Temperature -20~+50 degree

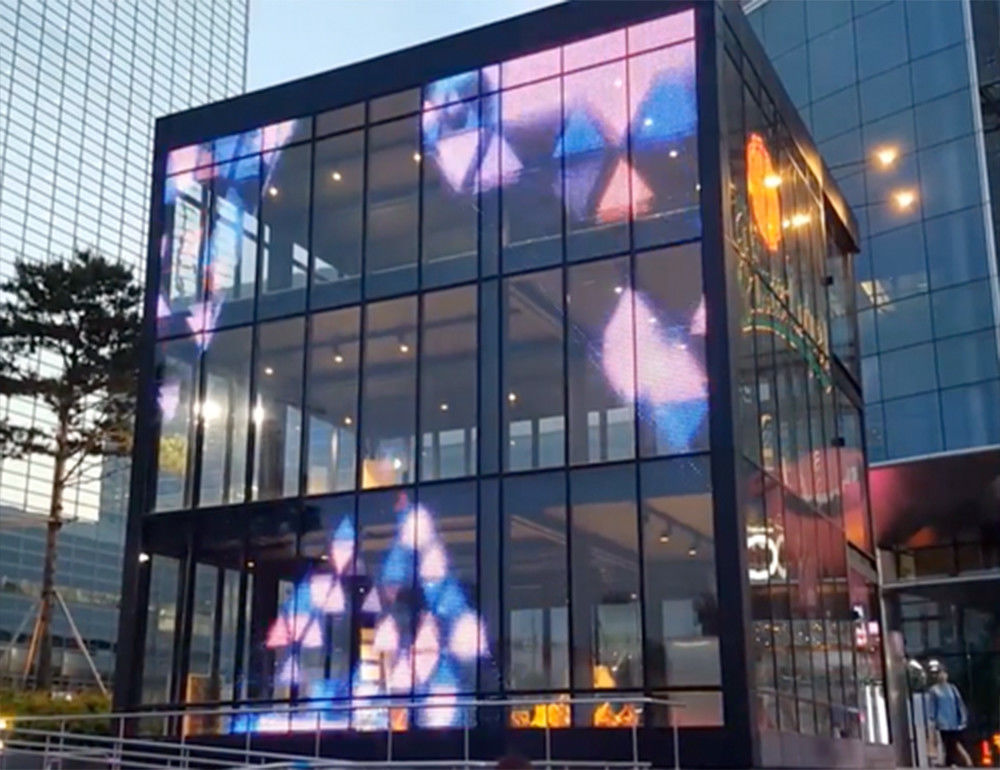

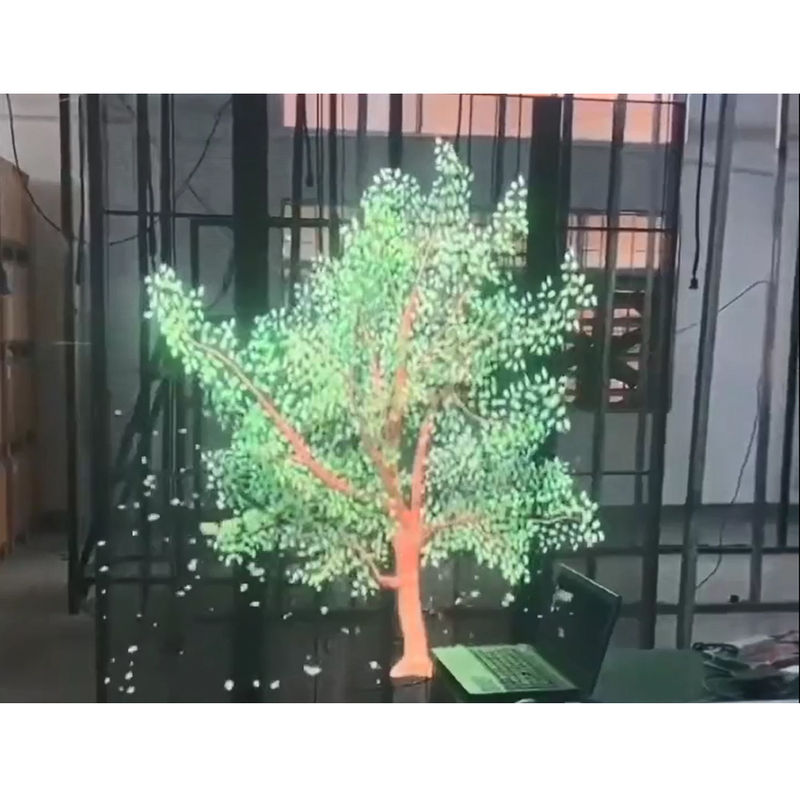

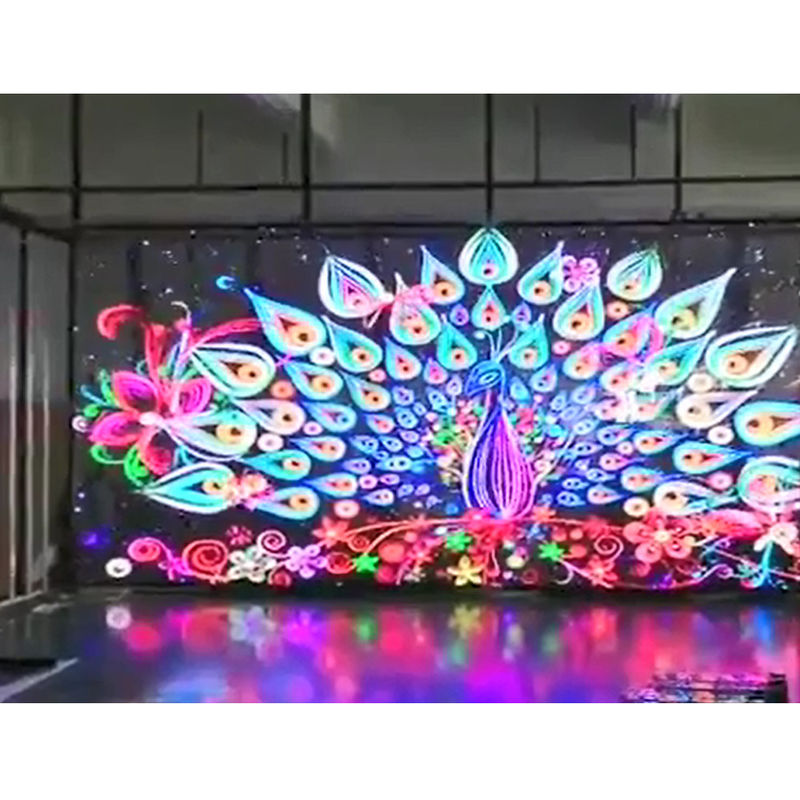

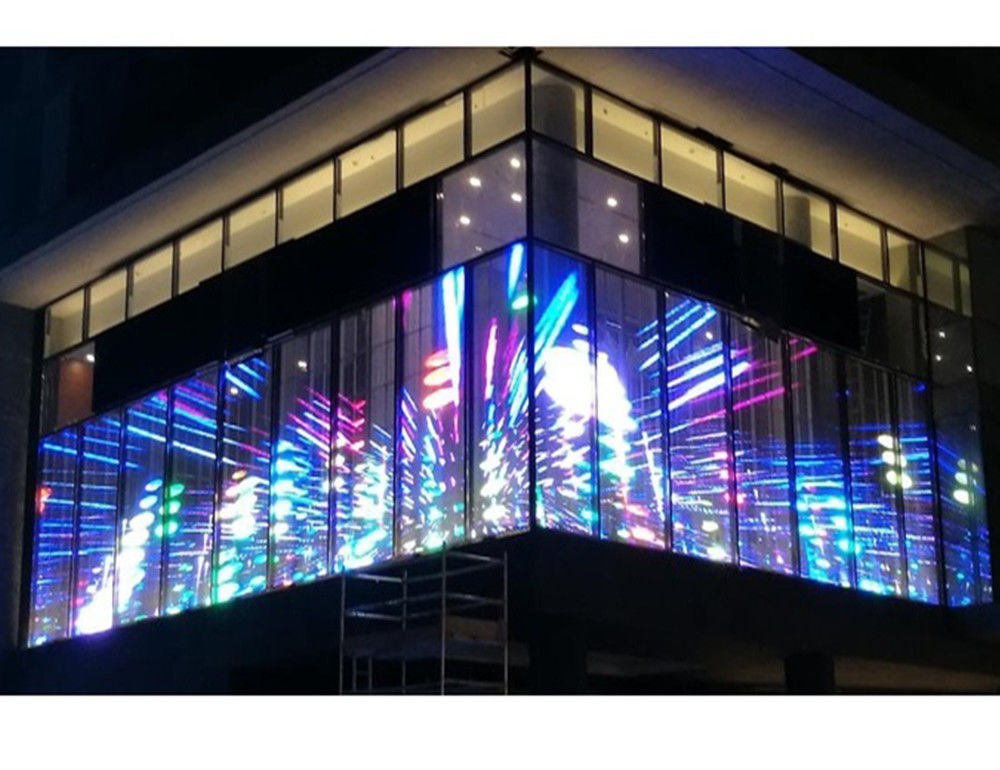

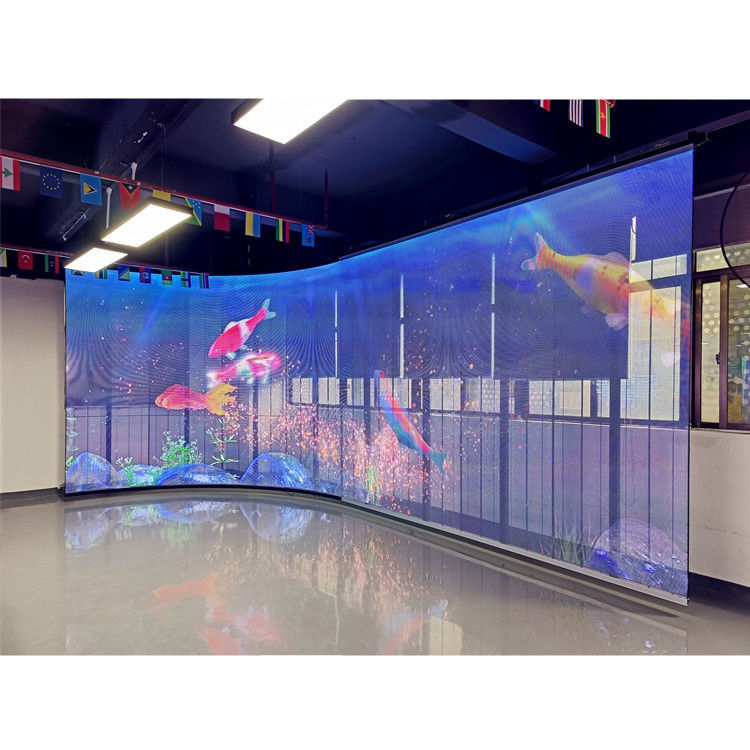

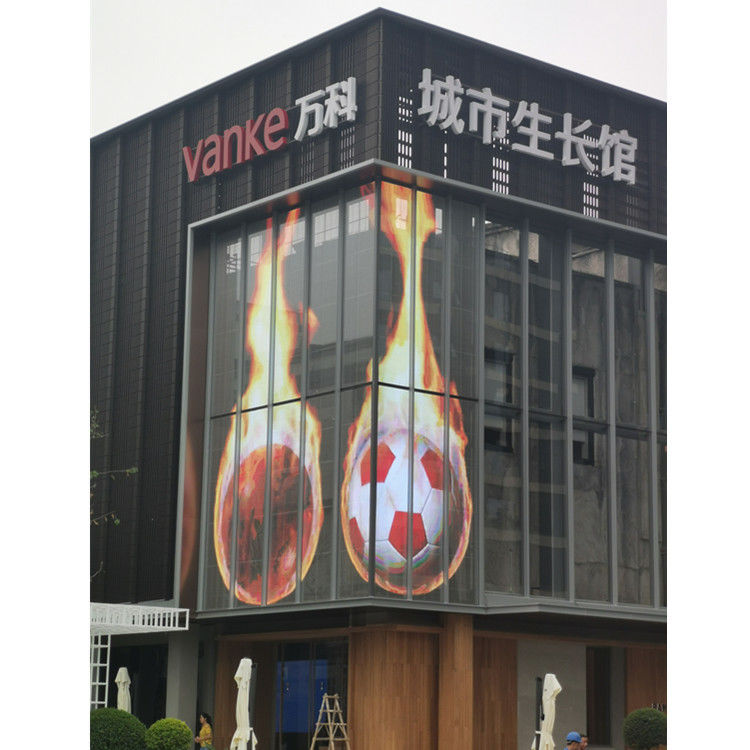

Product Picture:

Full Color 3.9mm Transparent LED Video Wall Glass Window 0

Full Color 3.9mm Transparent LED Video Wall Glass Window 1



Advantage:

Seamless connection;

Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°);

Signal backup and power backup;

Brightness and chromaticity calibration;

Mixed use of cabinets from different batches;

True color reproduction;

Anti-ghost;

High gray scale (16bit) and high refresh rate (2880Hz);

Lower power consumption with high PFC power supply, the drive current of each LED lamp only less than 30mA;

Customizable design.

Supporting synchronous control /3G wireless control/Asynchronous control



After-sales service:

Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!



Installation:
1.We can assist the training and technical support for the customer in the factory, if the customer requires so.
2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your
esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course,
if you need.



FAQ:

Q1:How to choose a led display?
A: You should consider 3 simple questions when you choose a led screen by yourself.
1. What's the environment- indoor or outdoor ?
2. Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
3. what is the approximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?
A: There's a range of pixel pitch from 1.25--30mm, there is a roughly principle-usually small pixel(1.25mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen( for example huge advertisement billboard on a big building).

Q3:Which control system should i choose?
A:There are two kind of control systems on the market-synchronous and asynchronous control system, And for big size led screen(usually more than 20sqm) need to use synchronous control system, below 20sqm it's up to you to use syn or asyn. But asyn control system's refresh rate is much lower than sync control system and which you can use wifi, 3G, 4G etc wireless to control.

Q4:How to order from us?
A: You can place an order by Alibaba online or to our company directly offline, before place an order please confirm with us for every deta.
