Customized Full Color Irregular Shape indoor DJ Booth Led display Screen flexible soft module arbitrary cutting LED
Flexible Module Series
APEXLS flexible screen is by soft LED modules. Compared with traditional screens, flexible screens have more advantages for creative solutions.

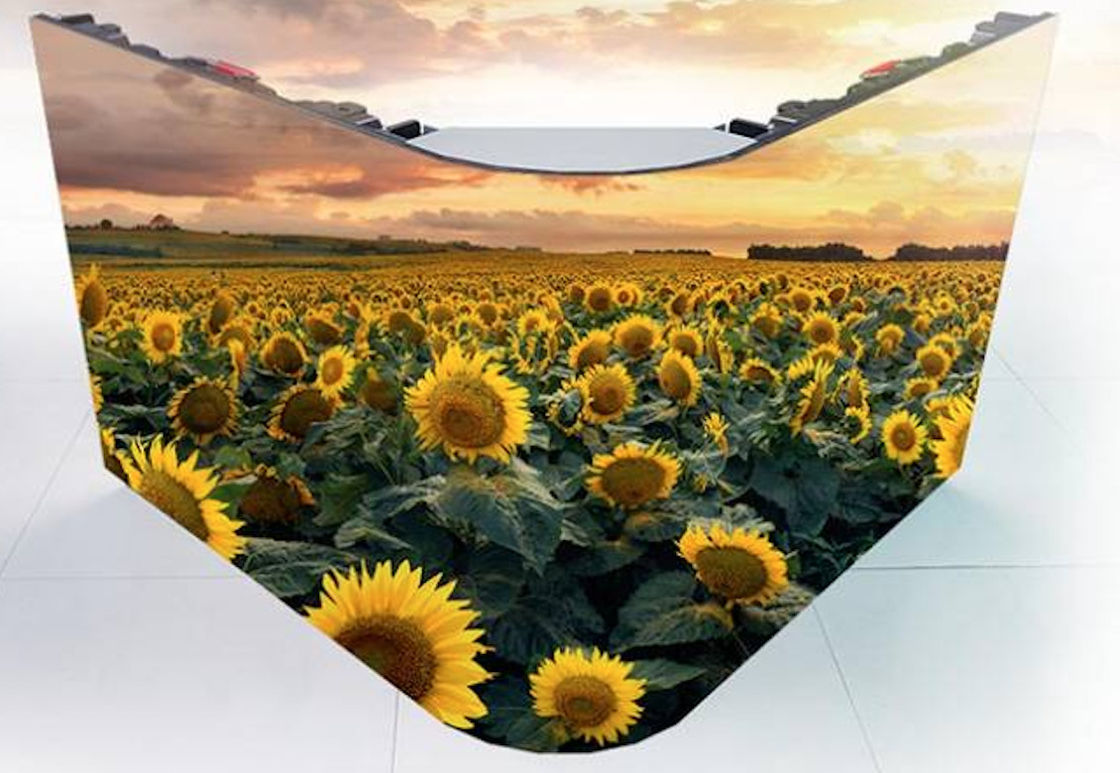

It can achieve creative shape, like Cylinder, Concave, Convex, Wave Shape, Mobius Strip etc.
Various pixel pitch optional, P1.5 , P1.8, P2.5, P4 to meet different requirements.
| Model |
P1.25 |
P1.5 |
P1.875 |
P2.5 |
P3 |
P4 |
| LED Type |
SMD1010 |
SMD1010-1212 |
SMD1515 |
SMD1515/2121 |
SMD2121 |
SMD2121 |
| Pixel Density (dot/m²) |
640,000 |
4,444,443 |
284,444 |
160,000 |
108,921 |
62,500 |
| Module Size (mm) |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
| Refresh Rate (Hz) |
3,840 |
3,840 |
3,840 |
3,840 |
3,840 |
3,840 |
| Brightness (nits) |
800-1,000 |
800-1,000 |
800-1,000 |
800-1,000 |
800-1,000 |
800-1,000 |
| Max. Power (W/m²) |
680 |
680 |
680 |
650 |
600 |
560 |
| Ave. Power (W/m²) |
200 |
200 |
200 |
180 |
175 |
160
|
Product Features:
1. High density, high contrast, high brightness (adjustable), high gray level, high refresh
2. Wide viewing angle, true and natural color, no seams, no color difference
3. Seamless splicing of any size
4. Variety of style design,more shapes are available
5. No noise, low power consumption, low EMI, long lifespan
6. Point-by-point brightness and chromaticity correction
Product advantages:
Customized special shape digital flexible LED screen
Available pixel pitch are: 1.2,1.5,1.8.2.5, 4mm
Based on site situation provide turn-key solution
Easy installation, without cabinet design solution for option.
Seamless and smooth splicing.
High refresh rate.
Magnet connection, easy maintenance.
