Circular Cube Cylinder Curved Full Color Indoor P1.8 P2 P2.5 P3 Irregular Shaped LED Display Screen
Flexible Module Series
Flexible-Soft Curve Design Screen/Module
Pixel Pitch: P4
Modules size :240*120mm
Service access: front
Color capability: Monolithic block contain tri-color (red, green, amber) LEDs for messages and graphics in three bright colors.
View angle: 140 degrees horizontal x 140 degrees vertical for placement almost anywhere.
Contrast enhancement:Polycarbonate face improves contrast in brightly lit areas and protects the LED
| Model |
flexible led display screens |
| Pixel pitch (mm) |
3 |
| Configuration |
SMD2121 |
| Module dimension (mm) |
320*160 |
| Module resolution(dots) |
104x 52 |
| Module weight(kg) |
0.28 |
| Pixel density(dots/㎡) |
111111 |
| Flatness error(mm) |
≤0.1 |
| Viewing angle(°) |
140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) |
＜1000 |
| Brightness adjustment |
256 levels by software |
| Contrast |
4000:1 |
| Repetition frequency(Hz) |
50/60 |
| Refresh frequency(Hz) |
≥1920 |
| Gray scale(bit) |
16bit |
| Ave. power(W/㎡) |
275 |
| Max power(W/㎡) |
550 |
| Working temp./humidity |
-20~45℃/10%~80%RH |
| Storing temp./humidity |
-30~60℃/10%~85%RH |
| Scanning |
1/16S |
| Power requirements |
AC90~264V, 47~63Hz |
| Signal Transmission Distance |
CAT cable:<100m;
Single mode fiber:<10km
|
| Installation type |
Fix and Rental |
| Life time(hrs) |
100,000 |
| Data input |
RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material |
Flexible PCB |
| Certificate |
CCC/TUV-CE/Rohs, etc. |
Product Features:
Large Radian and High Flexibility
The flexible module LED display uses a flexible material circuit board, and the mask is made of silica gel.

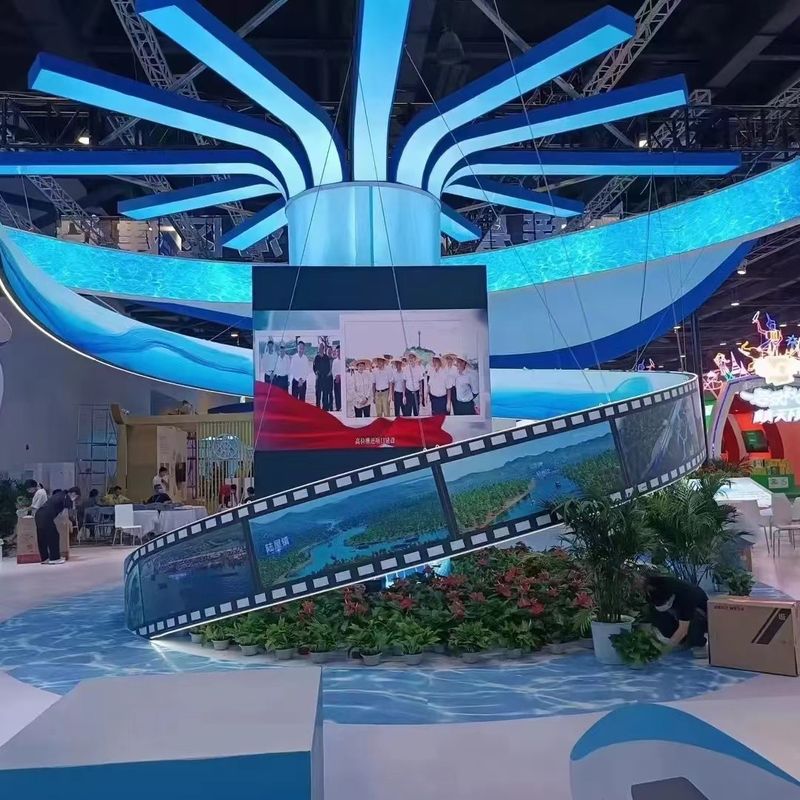

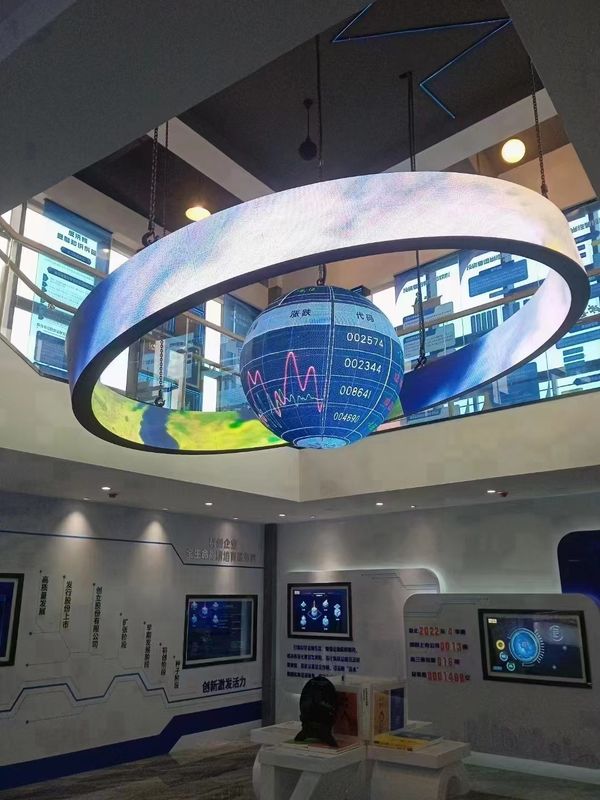

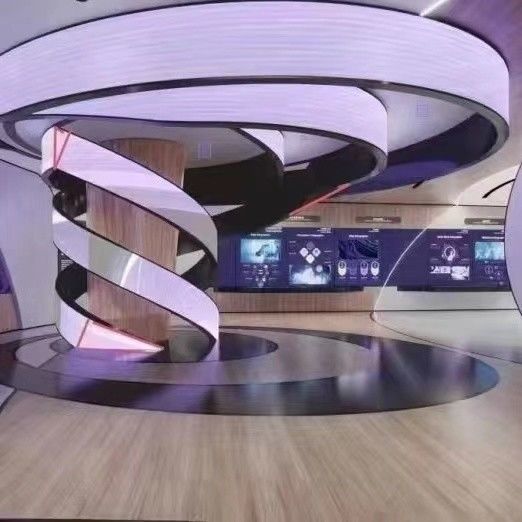

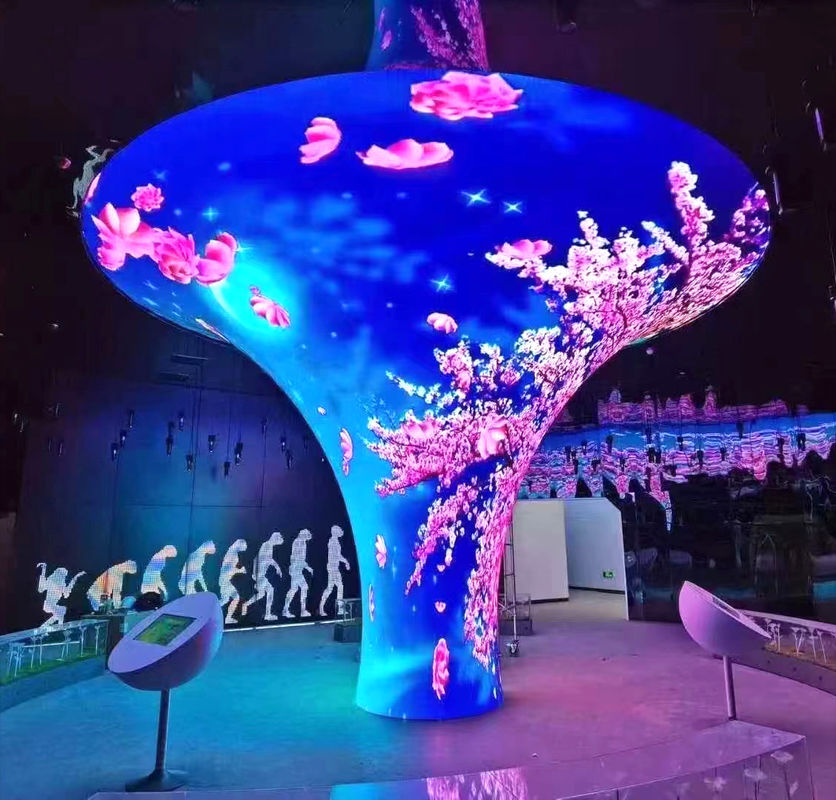

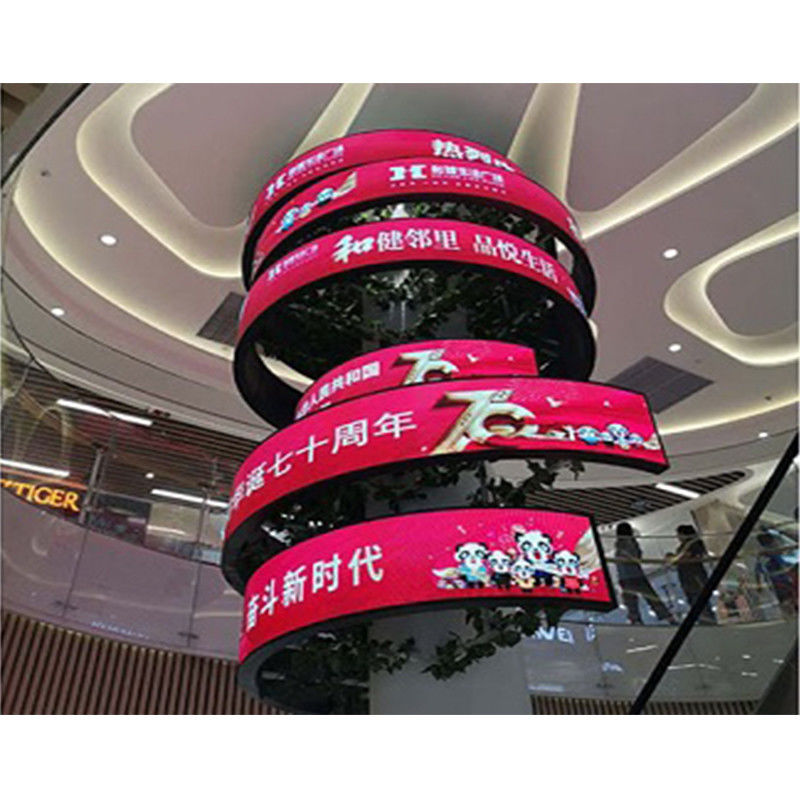

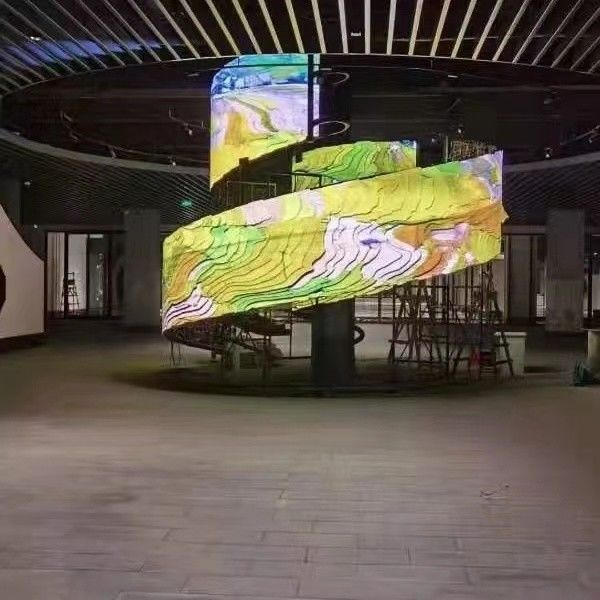

The module is flexible, and various screen shapes can be customized at will,
such as cylindrical, arched, wavy, convex, concave etc, to create an amazing and unbelievable viewing effect.
Magnetic Front Service Design
Thanks to the magnetic design, it can be easily attached to any metal surface/structure, saving frame, space and maintenance costs.
With special tools, front-end maintenance can be completed, which is convenient and quick.
Simple And Quick Installation
1.High brightness 3 in 1 LED SMD with best viewing angle.
2.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
3.Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.
