led display screen TENBULL P4.81 P3.91 P2.064 1R1G1B 3d outdoor advertising led display screen
Quick detail
1.Color: 1Red 1Green 1Blue/ Full Color
2.Pixels:4.81mm
3.LED type: SMD1921
4.Scan mode:1/13 scan
5.Module size:250*250mm
6.Power supply: 5V/60A
Product detail
1.Its light, transparent and thin structural design makes it easy to install, maintain and use in a large area.
2.This product can adapt to the harsh climate, because it has the power box design of insulated PCB board and inclined drainage design.
3.With comprehensive functions, you can use the program editing and playing software to save the edited content in the control card, and the information will be automatically displayed in cycles according to the program list.
4.With high resolution, it can perfectly display high-definition image quality and delicate colors, which is comparable to LCD to a certain extent.
5.The core material of the display screen is high-quality luminous components, and it adopts its own patented circuit board design, which has a long service life.
6.This product has a good visual angle. It has a large visual angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
7.Its performance is stable. The unique treatment of the anti electromagnetic wave of the display screen is an important reason why the display screen has been stable compared with other displays. The use of distributed scanning technology and modular design technology makes the display screen more reliable and stable.
P4.81 PARAMETER
| MODULE |
Iterm |
parameter |
| |
Product model |
P4.81-13S |
| |
Module size |
250mm*250mm |
| |
Pixel pitch |
4.81mm |
| |
Pixel density |
43264dot/m2 |
| |
Pixel configuration |
1R1G1B |
| |
LED type |
SMD1921 |
| |
IC |
FM6353 |
| |
Pixel resolution |
52dots(W)*52dots(H) |
| |
Max Power consumpion |
60W |
| |
Module weight |
1.2kg |
| |
Drive type |
Constant drive |
| |
Scan mode |
1/13 scan |
| LED cabinet |
cabinet size |
500mm*1000mm |
| |
Module quantity |
8pcs |
| |
Power supply |
5V/60A |
| |
Pixel per cabinet |
104*208 |
| |
Brightness of white balance |
≥5000cd/m2 |
| |
Best viewing distance |
4M～50M |
| |
The best perspective |
160°(W) 120°(H) |
| |
Temperature |
storage:-35℃～+85℃
work:-20℃～+50℃
|
| |
Opration humidity |
10%-95% |
| |
Thickness |
85mm |
|
power
|
Working voltage |
AC220V±10% |
| |
Average Power |
400W/S |
| |
Max.Power consumption |
≤800W/S |
| |
Current |
≤20mA(single LED) |
|
Control syste
|
CPU |
Pentium4 or above |
| |
Operation system |
WIN98/2000/NT/XP |
| |
Control method |
Synchronization |
|
Main technical
parameter
|
Driving device |
Constant currentdriver IC |
| |
Refresh frequency |
≥3840HZ |
| |
Grey scale/colors |
256levels of each color(RGB)/16.7M colors |
| |
MTBF |
≥9000hours |
| |
Power switch |
Automatic switch |
| |
Display Mode |
800*600/1024*768 |

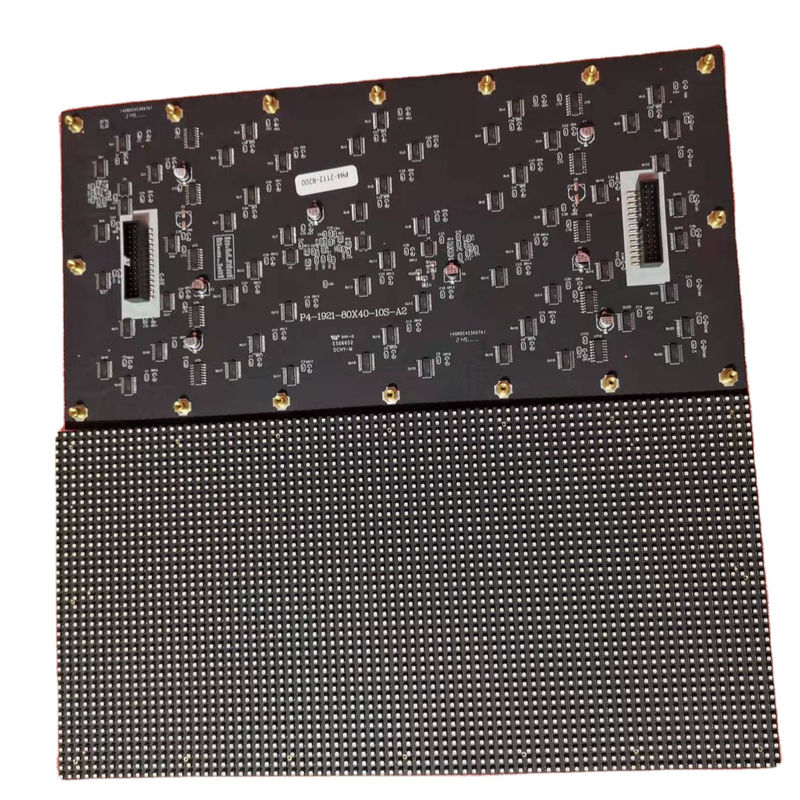

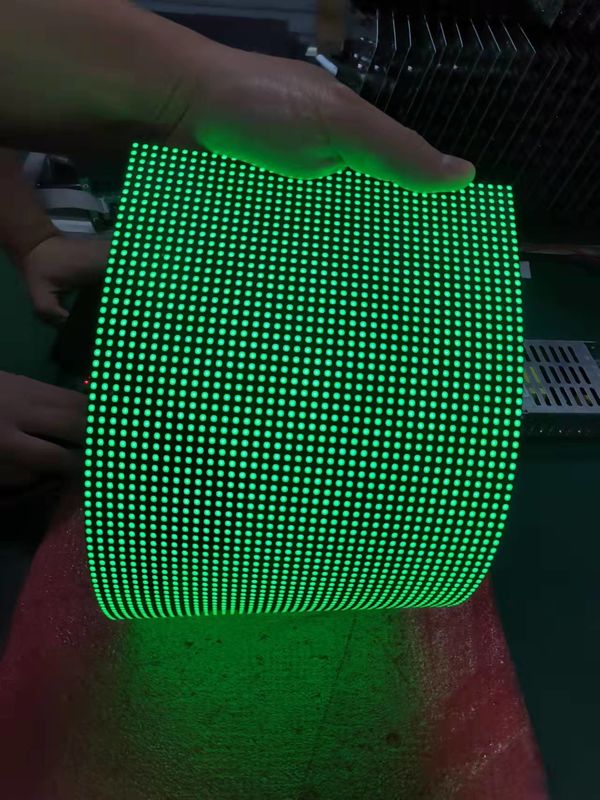

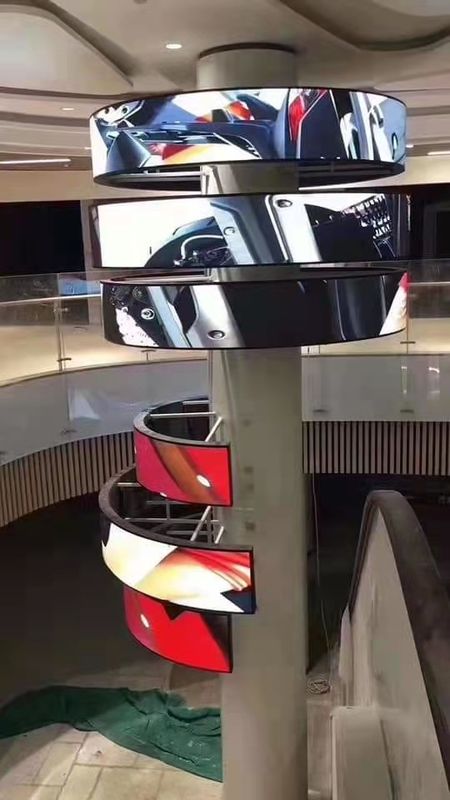

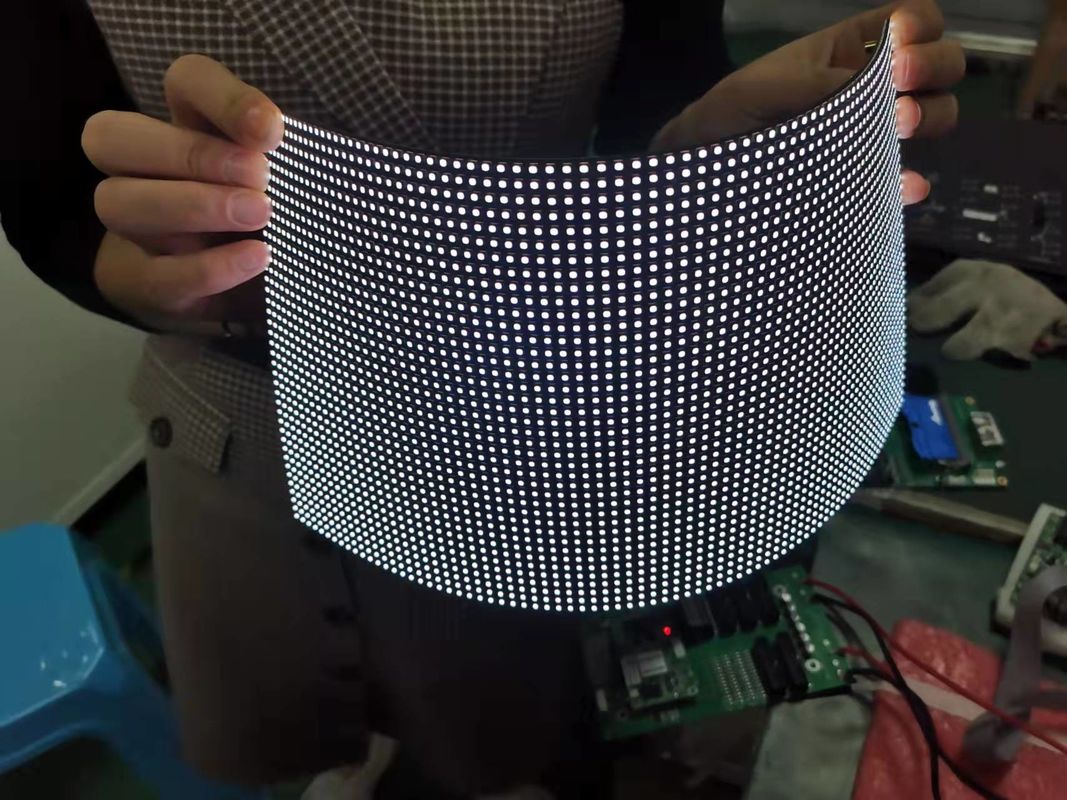

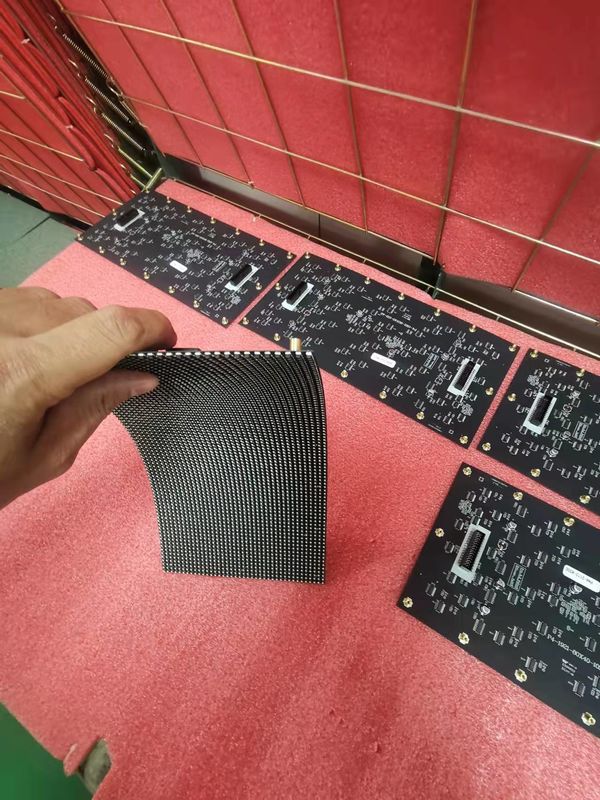

Product photo
FAQ
Q1.What's the pixel pitch for Outdoor LED Display Screen?
A:Outdoor(P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
Q2.Do you offer a guarantee for the products?
A:Yes, we offer 1.5 years warranty to our products.
Q3.What is the payment method?
A:As for the payment method, we generally adopt T/T delivery, or we can make different plans according to different situations.
