WMSJ P4.81 P3.91 P2.064 LED display screen full color advertising led display screen 1R1G1B
Quick detail
1.Color: 1Red 1Green 1Blue
2.Pixels:4.81mm
3.LED type: 1921
4.Scan mode:1/13 scan
5.Temperature: storage:-35℃～+85℃ work:-20℃～+50℃
Product detail
1.The design is novel, simple and generous, and its weight is light, so it is convenient to load and unload. And it has a unique black light design and fine photographic effect.
2.This product can adapt to the harsh climate, because it has a sloping drainage design and a power box design with insulated PCB board.
3.You can edit, add, delete and modify the text, graphics, images and other information at will, which will be stored in the control card. The information will be displayed automatically according to the program list.
4.Within the visible distance, when the sun shines directly on the screen surface, the content displayed on the LED display screen is still clearly visible.
5.This LED display screen has a long life because it uses high-quality luminous components as its core materials.
6.This product adopts non-linear point by point correction technology, with clearer text, stronger sense of hierarchy and better display effect.
7.The 160 ° wide viewing angle is consistent with the height of each LED, and there is a large viewing angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
P4.81 PARAMETER
| MODULE |
Iterm |
parameter |
| |
Product model |
P4.81-13S |
| |
Module size |
250mm*250mm |
| |
Pixel pitch |
4.81mm |
| |
Pixel density |
43264dot/m2 |
| |
Pixel configuration |
1R1G1B |
| |
LED type |
SMD1921 |
| |
IC |
FM6353 |
| |
Pixel resolution |
52dots(W)*52dots(H) |
| |
Max Power consumpion |
60W |
| |
Module weight |
1.2kg |
| |
Drive type |
Constant drive |
| |
Scan mode |
1/13 scan |
| LED cabinet |
cabinet size |
500mm*1000mm |
| |
Module quantity |
8pcs |
| |
Power supply |
5V/60A |
| |
Pixel per cabinet |
104*208 |
| |
Brightness of white balance |
≥5000cd/m2 |
| |
Best viewing distance |
4M～50M |
| |
The best perspective |
160°(W) 120°(H) |
| |
Temperature |
storage:-35℃～+85℃
work:-20℃～+50℃
|
| |
Opration humidity |
10%-95% |
| |
Thickness |
85mm |
|
power
|
Working voltage |
AC220V±10% |
| |
Average Power |
400W/S |
| |
Max.Power consumption |
≤800W/S |
| |
Current |
≤20mA(single LED) |
|
Control syste
|
CPU |
Pentium4 or above |
| |
Operation system |
WIN98/2000/NT/XP |
| |
Control method |
Synchronization |
|
Main technical
parameter
|
Driving device |
Constant currentdriver IC |
| |
Refresh frequency |
≥3840HZ |
| |
Grey scale/colors |
256levels of each color(RGB)/16.7M colors |
| |
MTBF |
≥9000hours |
| |
Power switch |
Automatic switch |
| |
Display Mode |
800*600/1024*768 |

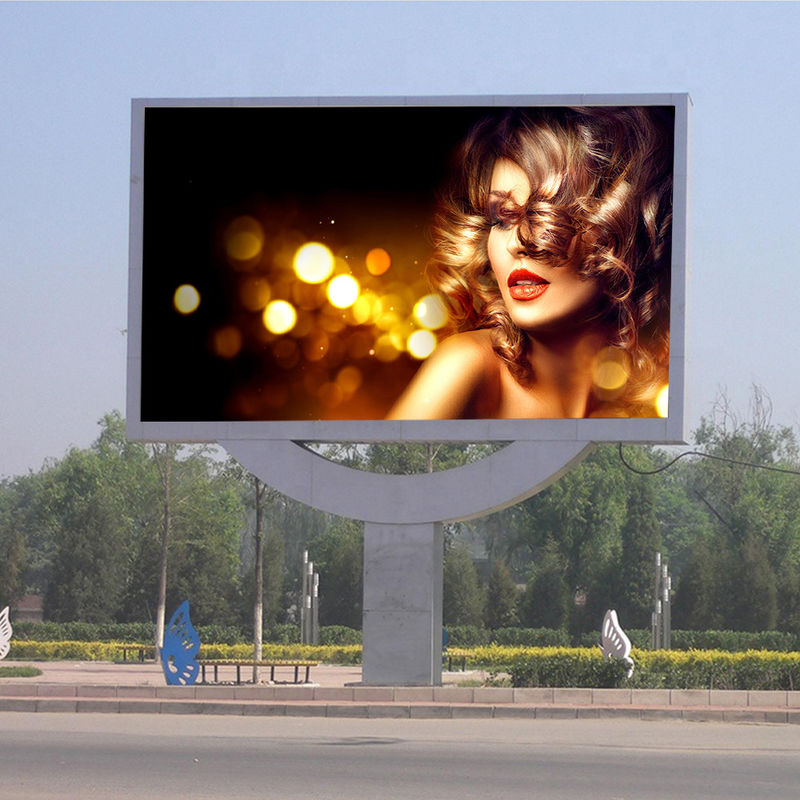

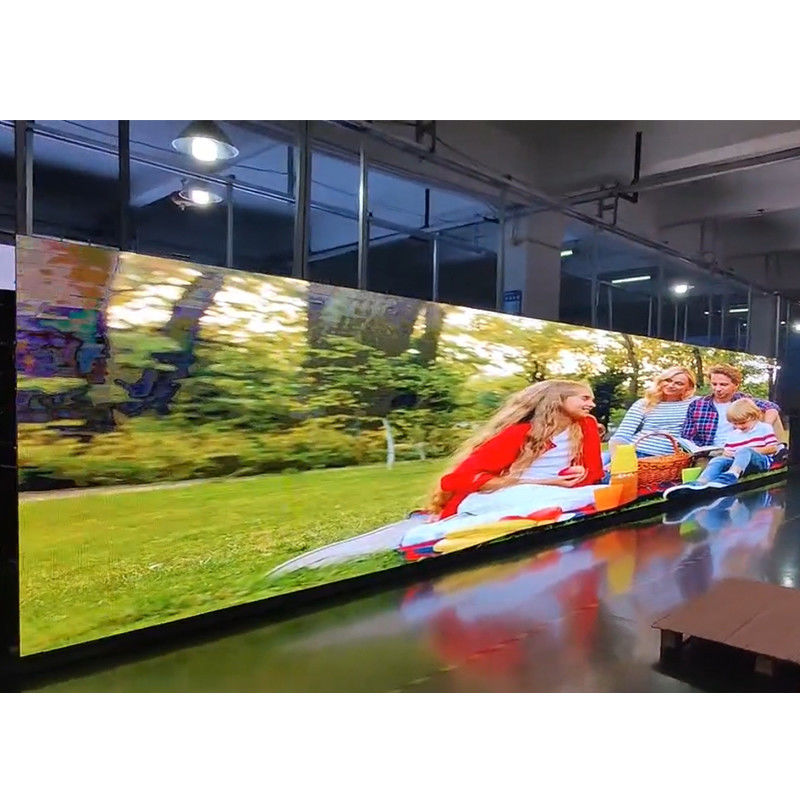

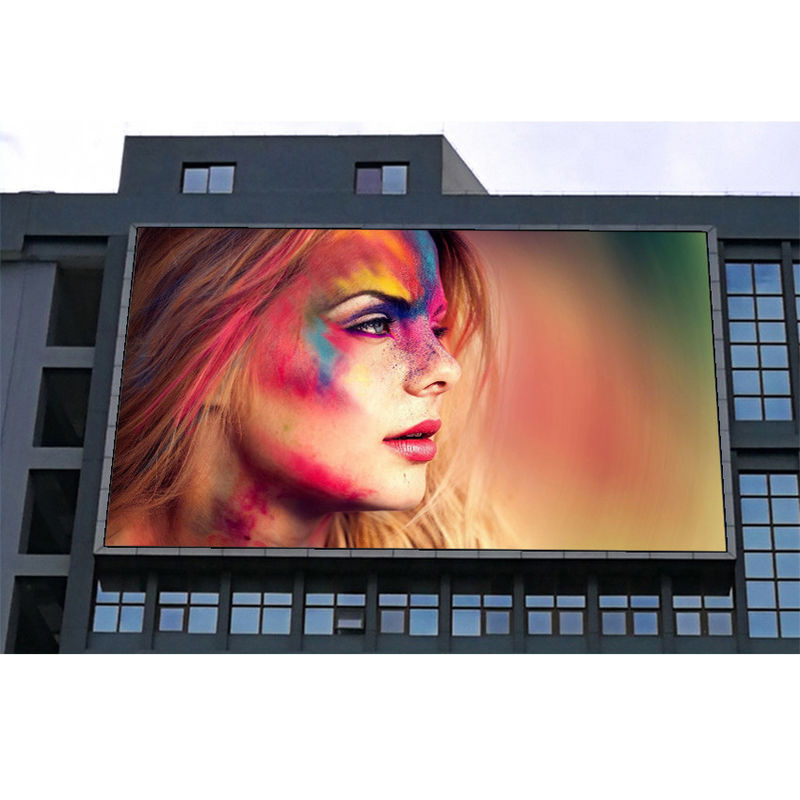

Product photo
FAQ
Q1.What's the pixel pitch for Outdoor LED Display Screen?
A:Outdoor(P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
Q2.Do you offer a guarantee for the products?
A:Yes, we offer 1.5 years warranty to our products.
Q3.What Can You Buy From US?
A:LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
