WMSJ P4.81 P3.91 P2.064 large outdoor display screen full color HD pixel pitch 4.81mm
Quick detail
1.Pixel pitch:4.81mm
2.size:module size is 250*250mm and cabinet size is 500*500mm/500*1000mm
3.LED type: SMD1921
4.Pixel: RGB
5.lifetime: 100000 hours
Product detail
1.This LED display is a new indoor and outdoor dual-use type, with a light, transparent and thin structural design.
2.TIt can work around the clock, with vivid colors, high refresh rate, anti-static, dust-proof, good heat dissipation, and high cost performance.
3.It has comprehensive functions, and can edit pictures, text, videos and other information. The arranged content is stored in the control card, and information playback is automatically displayed in cycles according to the program list.
4.This product has strong luminous brightness, and the display content is still clearly visible when the sun directly shines on the screen surface within the visible distance.
5.The display effect is good, and the non-linear point by point correction technology is adopted, so the text is clearer and the sense of hierarchy is stronger.
6.The display screen has a long service life, and the core material is high-quality luminous components.
P4.81 PARAMETER
| MODULE |
Iterm |
parameter |
| |
Product model |
P4.81-13S |
| |
Module size |
250mm*250mm |
| |
Pixel pitch |
4.81mm |
| |
Pixel density |
43264dot/m2 |
| |
Pixel configuration |
1R1G1B |
| |
LED type |
SMD1921 |
| |
IC |
FM6353 |
| |
Pixel resolution |
52dots(W)*52dots(H) |
| |
Max Power consumpion |
60W |
| |
Module weight |
1.2kg |
| |
Drive type |
Constant drive |
| |
Scan mode |
1/13 scan |
| LED cabinet |
cabinet size |
500mm*1000mm |
| |
Module quantity |
8pcs |
| |
Power supply |
5V/60A |
| |
Pixel per cabinet |
104*208 |
| |
Brightness of white balance |
≥5000cd/m2 |
| |
Best viewing distance |
4M～50M |
| |
The best perspective |
160°(W) 120°(H) |
| |
Temperature |
storage:-35℃～+85℃
work:-20℃～+50℃
|
| |
Opration humidity |
10%-95% |
| |
Thickness |
85mm |
|
power
|
Working voltage |
AC220V±10% |
| |
Average Power |
400W/S |
| |
Max.Power consumption |
≤800W/S |
| |
Current |
≤20mA(single LED) |
|
Control syste
|
CPU |
Pentium4 or above |
| |
Operation system |
WIN98/2000/NT/XP |
| |
Control method |
Synchronization |
|
Main technical
parameter
|
Driving device |
Constant currentdriver IC |
| |
Refresh frequency |
≥3840HZ |
| |
Grey scale/colors |
256levels of each color(RGB)/16.7M colors |
| |
MTBF |
≥9000hours |
| |
Power switch |
Automatic switch |
| |
Display Mode |
800*600/1024*768 |

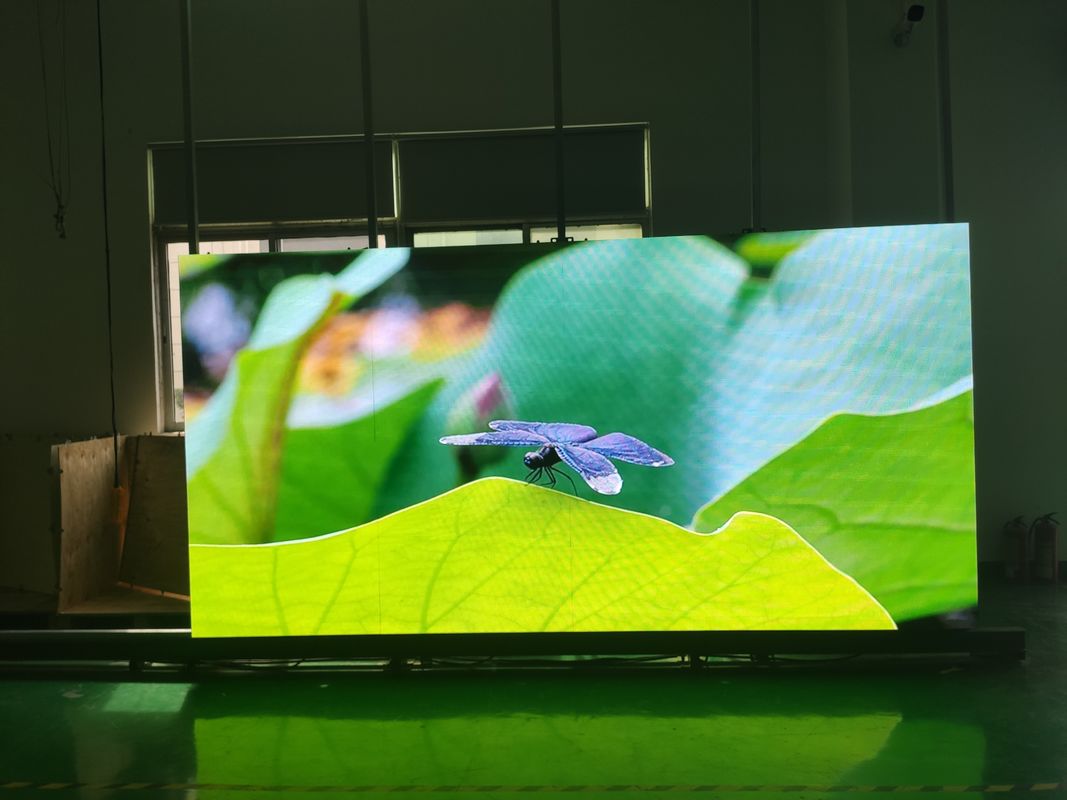

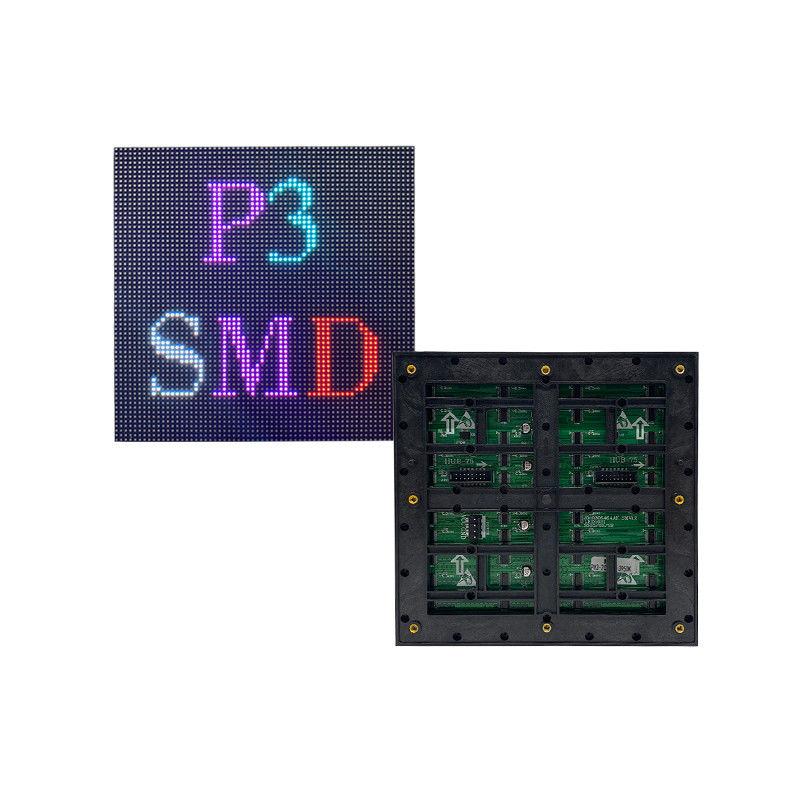

Product photo
FAQ
Q1.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q2.How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our products accept CE,RoHS,FCC authentication,etc.
Q3.How can I know more?
A:Contact us right now is the fastest way...
