WMSJ P4.81 P3.91 P2.064 LED display screen advertising led display screen pixel pitch 4.81mm
Quick detail
1.Color:full color 1Red Green Blue
2.Pixels:4.81mm
3.LED type:SMD1921
4.Scan mode:1/13 scan
Product detail
1.The design is novel, simple and generous, and its weight is light, so it is convenient to load and unload. And it has a unique black light design and fine photographic effect.
2.Imported luminescent materials, high-quality LED display dedicated IC chip design, small package, high brightness, large angle antistatic and so on.
3.The high-performance die-cast aluminum box has the advantages of light weight, low failure rate, easy maintenance and convenient operation.
4.The edited content of the computer is sent to the system control card, which shows that the edited content is easy to operate.
5.This LED display screen has a long life because it uses high-quality luminous components as its core materials.
6.High-quality LED wafers are selected, with large angle, good flatness, low antistatic brightness attenuation and high wavelength stability.
7.Mask design, non-reflective surface, large viewing angle, good display effect.
P4.81 PARAMETER
| MODULE |
Iterm |
parameter |
| |
Product model |
P4.81-13S |
| |
Module size |
250mm*250mm |
| |
Pixel pitch |
4.81mm |
| |
Pixel density |
43264dot/m2 |
| |
Pixel configuration |
1R1G1B |
| |
LED type |
SMD1921 |
| |
IC |
FM6353 |
| |
Pixel resolution |
52dots(W)*52dots(H) |
| |
Max Power consumpion |
60W |
| |
Module weight |
1.2kg |
| |
Drive type |
Constant drive |
| |
Scan mode |
1/13 scan |
| LED cabinet |
cabinet size |
500mm*1000mm |
| |
Module quantity |
8pcs |
| |
Power supply |
5V/60A |
| |
Pixel per cabinet |
104*208 |
| |
Brightness of white balance |
≥5000cd/m2 |
| |
Best viewing distance |
4M～50M |
| |
The best perspective |
160°(W) 120°(H) |
| |
Temperature |
storage:-35℃～+85℃
work:-20℃～+50℃
|
| |
Opration humidity |
10%-95% |
| |
Thickness |
85mm |
|
power
|
Working voltage |
AC220V±10% |
| |
Average Power |
400W/S |
| |
Max.Power consumption |
≤800W/S |
| |
Current |
≤20mA(single LED) |
|
Control syste
|
CPU |
Pentium4 or above |
| |
Operation system |
WIN98/2000/NT/XP |
| |
Control method |
Synchronization |
|
Main technical
parameter
|
Driving device |
Constant currentdriver IC |
| |
Refresh frequency |
≥3840HZ |
| |
Grey scale/colors |
256levels of each color(RGB)/16.7M colors |
| |
MTBF |
≥9000hours |
| |
Power switch |
Automatic switch |
| |
Display Mode |
800*600/1024*768 |

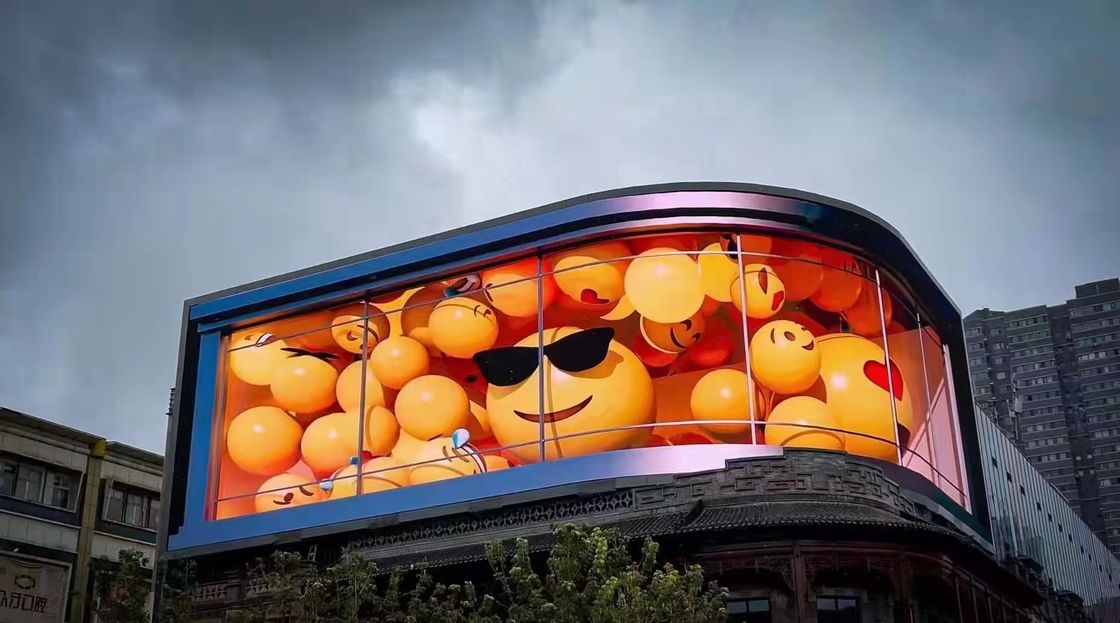

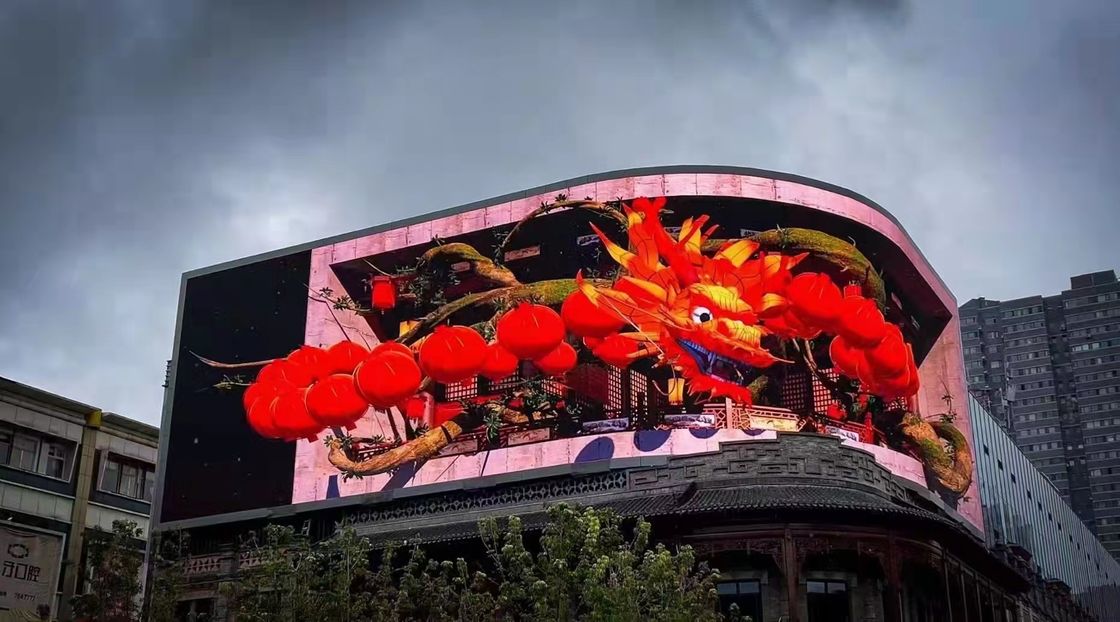

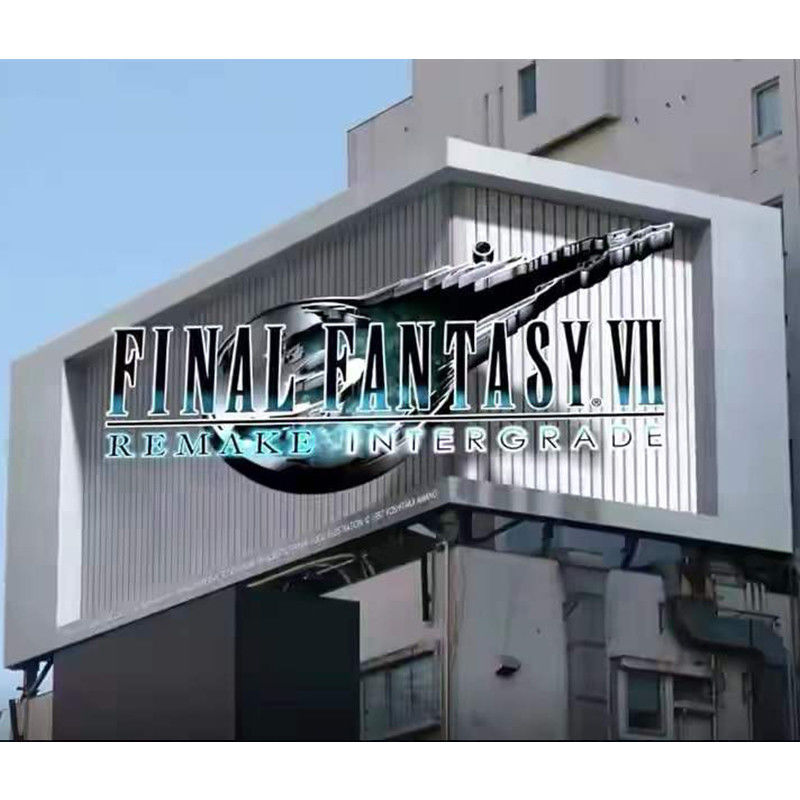

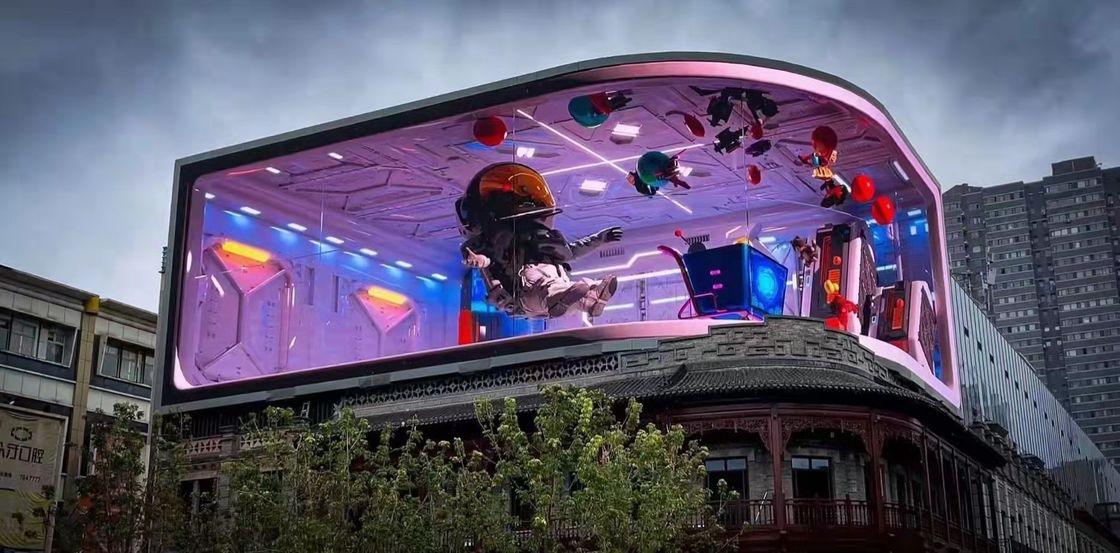

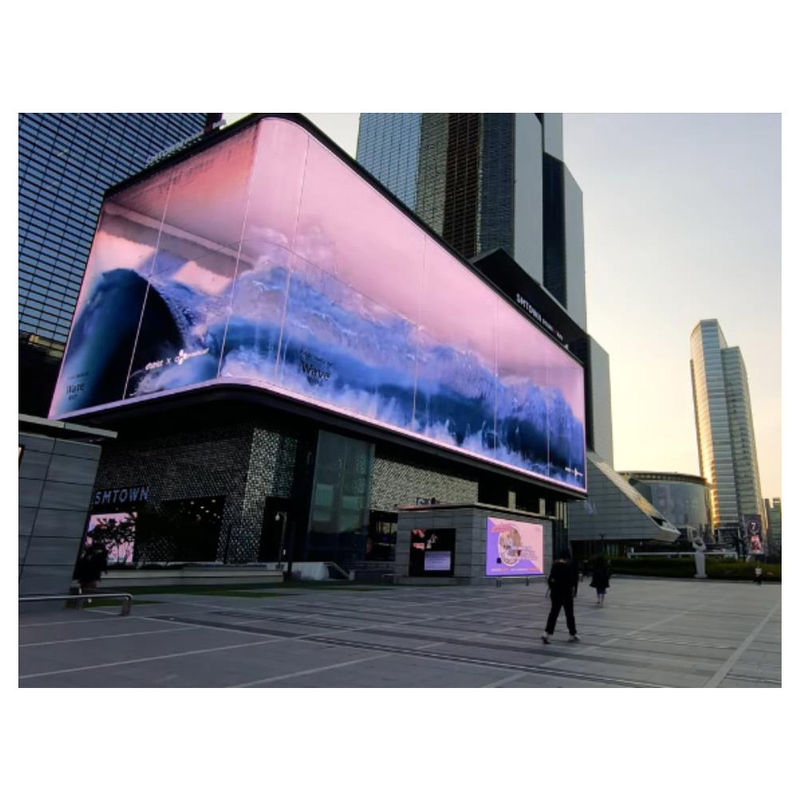

Product photo
FAQ
Q1.What is your after-sale service?
A:Normally we offer 1 year free warranty but whole life time technical support.After 1 year, components would be charged if any mulfunctions occur on the device.
Q2.Do you offer a guarantee for the products?
A:Yes, we offer 1 years warranty to our products
Q3.What Can You Buy From US?
A:LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
